　　1, product model: AFLX-1500

　　2, flexible anode diameter: 35mm

　　3, conductive polymer diameter: 13.2 ± 0.5 mm

　　4, the standard weight: 1.49kg / m

　　5, laying depth (tank bottom): 500 mm or more

　　6, laying distance (buried pipeline: from the outer wall of the pipe 1-3D

　　7, the activated carbon consumption rate: 1 Kg / A-year

　　8, the maximum output current density: 52 mA / m

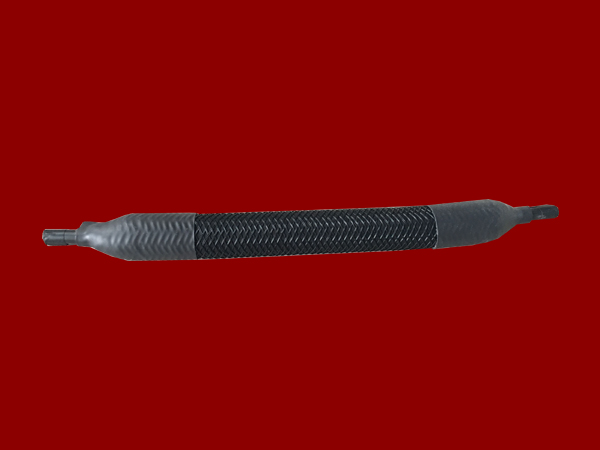

　　MMO type flexible anode (GDHCTECH MA 52mA / 1 × 10) technical specifications

　　1. Flexible anode structure

　　2. Rated operating current: 52mA / m;

　　3. Design life: ≥ 25 years

　　4. Flexible anode basic dimensions

　　Finished diameter: Φ38.0mm ± 2.0mm

　　5. anode body

　　Internal cable: Structure: 1 × 10mm2

　　Copper wire DC resistance:

　　GB / T 3048-2007 "Wire and cable point performance test method", ≤ 1.95Ω / km

　　MMO wire: diameter: Φ1.0mm

　　Substrate: ASTM B863-2010 "Titanium and Titanium Alloy Wire Standard": Grade 1 Titanium

　　Coating thickness: ASTM B568-2009 "X-ray spectroscopy analysis of coating thickness", ≥ 6 g / m2

　　6. Toner:

　　Fixed carbon content:

　　GB2001-91 "coke industry analysis and determination method", ≥ 98.0%

　　Granularity:

　　YS / T587.12-2006 "Method for the determination of petroleum coke after calcination for carbon anodes - Part 12: Determination of particle size distribution", 0.1 mm - 1.0 mm

　　Volume resistivity:

　　GB / T24521-2009 "Coke resistivity test method", ≤0.05Ω.m.

　　7. Wrap the cloth cover

　　Breaking strength:

　　ISO 3303-1990 "Rubber- or plastics- coated fabrics -Determination of bursting tength", ≥ 500N

　　Quality per unit area:

　　GB / T 4669-2008 "Determination of unit length and mass per unit area of woven fabrics", ≥ 210 g / m2

　　Number of wear (0.600 water sandpaper):

　　GB / T21196-2007 "Determination of abrasion resistance of textiles Martindale fabrics - Part 2: Determination of breakage of specimens", ≥100 times

　　Puncture resistance

　　ASTM D4833-2007 "geotextile, plastic film and its related products, anti-piercing index of the standard test method", ≥ 28kg

　　8. Outer woven filaments

　　Linear density:

　　GB / T 14343-2008 "Chemical fiber filament yarn density test method", ≥ 2000.0 dtex
